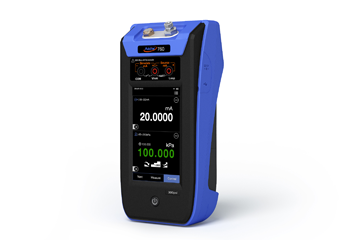

Additel ADT 760-D

ADT 760-D, weighing less than 4 lbs (1.8 kg), has innovative design with a built-in pump, precision pressure sensor, internal controller and a large touch-screen colour display. To generate pressure, simply key in the desired pressure and the Additel 760 will do the rest. Each unit has four channels: one internal pressure channel for source and measure pressures, two external pressure measurement channels, and one electronic measure and source channel. This series of calibrator has three standard models with the option of adding HART communications, documentation and data logging.

ADT760-D
The 760-D gives you differential and gauge pressure but at a higher pressure range than the ADT 760-LLP. Covering the range of -12.5 to 35 psi (-0.86 to 2.5 bar) and with an accuracy of 0.02%FS, it is an ideal solution to cover very common gauge and differential pressure measurements. The ADT 760-D comes with an internal module covering its full range, but lower pressure modules down to ±10 inH2O differential can be purchased to improve accuracy at lower pressures.

Documenting Process Functionality
Each model of the Additel 760 series has an option incorporating documentation and communication functions turning your 760 into a multifunction documenting process calibrator. This feature provides HART communication, task documentation and data logging.
